Mac Github using SSH over the HTTPS port

1. 背景

现有 ~/.ssh/configGithub 配置:

ini
# ...

# github
Host github.com
Hostname ssh.github.com
Port 22
PreferredAuthentications publickey
IdentityFile ~/.ssh/id_rsa_github

# ...

没有代理的话,会比较慢,所以加上代理配置如下:

ini
# github
# ...
ProxyCommand nc -X 5 -x 127.0.0.1:7890 %h %p

那么就可以使用 git clone git@github.com:element-plus/element-plus.git 的方式 clone 到本地。

如果增加代理后,git clonegit pull 等命令还是会出现执行超时的情况,那么就需要通过 Using SSH over the HTTPS port 的方式。

官网文档如下:

If you'd rather use SSH but cannot connect over port 22, you might be able to use SSH over the HTTPS port. For more information, see Using SSH over the HTTPS port.

2. Test if SSH over the HTTPS port is possible

To test if SSH over the HTTPS port is possible, run this SSH command:

bash
ssh -T -p 443 git@ssh.github.com
# Hi USERNAME! You've successfully authenticated, but GitHub does not
# provide shell access.

端口 443 的主机名是 ssh.github.com,而不是 github.com

If that worked, then skip this step. if not, will this:

bash
ssh -T -p 443 git@ssh.github.com
# git@ssh.github.com: Permission denied (publickey).

# 或者
ssh -T git@ssh.github.com
# git@ssh.github.com: Permission denied (publickey).

then continue Error: Permission denied (publickey).

Check that you are connecting to the correct server:

bash
ssh -vT git@github.com
# > OpenSSH_8.1p1, LibreSSL 2.7.3
# > debug1: Reading configuration data /Users/YOU/.ssh/config
# > debug1: Reading configuration data /etc/ssh/ssh_config
# > debug1: /etc/ssh/ssh_config line 47: Applying options for *
# > debug1: Connecting to github.com port 22.

可以看到默认是 22 端口。

You should verify your connection by typing:

bash
ssh -T git@github.com
# git@github.com: Permission denied (publickey).

3. Make sure you have a key that is being used

Generating a new SSH key and adding it to the ssh-agent.

bash
ssh-keygen -t ed25519 -C "your_email@example.com"
Generating public/private ed25519 key pair.
Enter file in which to save the key (/Users/[username]/.ssh/id_ed25519): /Users/[username]/.ssh/id_ed25519_github_ssh
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /Users/[username]/.ssh/id_ed25519_github_ssh
Your public key has been saved in /Users/[username]/.ssh/id_ed25519_github_ssh.pub
The key fingerprint is:
SHA256:9fPZqbKVnzvnPNTog7qcvpKg5xiu/0Y0ATUKXGhakjI your_email@example.com
The key's randomart image is:
+--[ED25519 256]--+
| o.oooo          |
|E =. ...         |
|.*  .  .  .      |
|.     o  . .     |
|     . .S   o  ..|
|      o      oo+o|
|    .o . .   =+..|
|   ..oo o. oo =+o|
|  .o+=o  oB=o. *B|
+----[SHA256]-----+

执行后,查看验证:

bash
cd ~/.ssh && ll | grep github_ssh
# -rw-------  1 [username]  staff   411B 12 31 17:10 id_ed25519_github_ssh
# -rw-r--r--  1 [username]  staff    99B 12 31 17:10 id_ed25519_github_ssh.pub

4. Adding your SSH key to the ssh-agent

Start the ssh-agent in the background:

bash
eval "$(ssh-agent -s)"
# Agent pid 59566

ssh-add ~/.ssh/id_ed25519_github_ssh -l -E sha256
# 256 SHA256:9fPZqbKVnzvnPNTog7qcvpKg5xiu/0Y0ATUKXGhakjI your_email@example.com (ED25519)

You can also check that the key is being used by trying to connect to git@github.com:

bash
ssh -vT git@github.com
# OpenSSH_9.4p1, LibreSSL 3.3.6
# debug1: Reading configuration data /Users/[username]/.ssh/config
# debug1: /Users/[username]/.ssh/config line 21: Applying options for github.com
# debug1: Reading configuration data /etc/ssh/ssh_config
# debug1: /etc/ssh/ssh_config line 21: include /etc/ssh/ssh_config.d/* matched no files
# debug1: identity file /Users/[username]/.ssh/id_ed25519_github_ssh type 3
# debug1: identity file /Users/[username]/.ssh/id_ed25519_github_ssh-cert type -1
# debug1: Local version string SSH-2.0-OpenSSH_9.4
# debug1: Remote protocol version 2.0, remote software version 159e461a3
# ...
# debug1: Authentications that can continue: publickey
# debug1: Next authentication method: publickey
# debug1: Offering public key: /Users/[username]/.ssh/id_ed25519_github_ssh ED25519 SHA256:9fPZqbKVnzvnPNTog7qcvpKg5xiu/0Y0ATUKXGhakjI explicit agent
# debug1: Server accepts key: /Users/[username]/.ssh/id_ed25519_github_ssh ED25519 SHA256:9fPZqbKVnzvnPNTog7qcvpKg5xiu/0Y0ATUKXGhakjI explicit agent
# Authenticated to ssh.github.com (via proxy) using "publickey".
# ...

In this example, SSH did find any keys.

  • -1 at the end of the identity file lines means SSH couldn't find a file to use.
  • Trying private key lines indicate that no file was found.

配置 SSH:

bash
touch ~/.ssh/config

配置内容为:

bash
# github
Host github.com
AddKeysToAgent yes
UseKeychain yes
IdentityFile ~/.ssh/id_ed25519_github_ssh

You should verify your connection by typing:

bash
ssh -T git@github.com
# Hi [github-username]! You've successfully authenticated, but GitHub does not provide shell access.

5. Adding a new SSH key to your GitHub account

  • Copy the SSH public key to your clipboard.

    bash
    pbcopy < ~/.ssh/id_ed25519_github_ssh.pub
    # Copies the contents of the id_ed25519_github_ssh.pub file to your clipboard

    或者手动复制:

    bash
    cat ~/.ssh/id_ed25519_github_ssh.pub
  • In the upper-right corner of any page on GitHub, click your profile photo, then click Settings.

  • In the "Access" section of the sidebar, click SSH and GPG keys.

  • Click New SSH key or Add SSH key.

  • In the "Key" field, paste your public key.

  • Click Add SSH key.

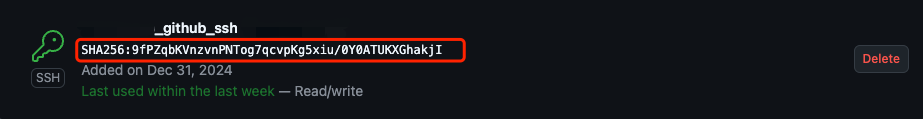

关联后,效果为:

其中,SHA256:9fPZqbKVnzvnPNTog7qcvpKg5xiu/0Y0ATUKXGhakjI 需要和 ssh-add -l -E sha256 执行结果一致。

6. 配置 SSH

完整的配置如下:

ini
# github
Hostname ssh.github.com
Port 443
User git
AddKeysToAgent yes
UseKeychain yes
IdentityFile ~/.ssh/id_ed25519_github_ssh
ProxyCommand nc -X 5 -x 127.0.0.1:7890 %h %p

正常预期,验证结果如下:

bash
ssh -T -p 443 git@ssh.github.com
# Hi [github-username]! You've successfully authenticated, but GitHub does not provide shell access.

ssh -T git@ssh.github.com
# Hi [github-username]! You've successfully authenticated, but GitHub does not provide shell access.

ssh -T  git@github.com
# Hi [github-username]! You've successfully authenticated, but GitHub does not provide shell access.
